The Mayfair Fully Fitted Wide Beam Barge Range
The “Mayfair” wide beam barge range comprises two “standard layout” boats (a 55′ one bedroom layout and a 60′ two bedroom layout), along with a fully bespoke design and build service.
Request a brochure or arrange an appointment.
This is a range of exceptional quality wide beam craft suitable either for leisure or live aboard use. The Elton Moss brand is held in high regard and is the envy of the waterways. The standard interior finish is oak but other finishes including a contemporary painted style are also available. The standard range comprises 55ft one bedroom or 60ft two bedroom models with a choice of 10ft, 11ft or 12ft widths. We welcome enquiries for other sizes. There is a choice of standard layouts including the popular rear galley format and for those wanting an individual interior, a bespoke design service is also available.
The Mayfair rear galley fully fitted widebeam:
60ft x 10ft (one bedroom) £155,000 + VAT
60ft x 12ft (one bedroom) £172,500 + VAT
70ft x 12ft (one bedroom) £180,000 + VAT
VAT
We are experts in zero rating VAT on wide beam boats for residential purposes.
Layout
Choice of several standard layouts plus bespoke design
Delivery
Includes delivery to agreed customer location and comprehensive handover (cranage not included).
Steelwork
Cruiser stern with rear Taff rail and hardwood seat
Eurocruiser stern also available
10mm baseplate, 6mm hull sides, 5mm cabin sides and 4mm roof
3 x 50mm rubbing strakes including one full length
Self draining front and rear decks
Quick release weed hatch
Fender eyes front, rear & side
Centre rope ring
Steel plank & pole rack
Engine
52hp Canaline diesel with PRM hydraulic gearbox (engine upgrades available)
60hp Canaline diesel with PRM hydraulic gearbox (60ft x 12ft)
Cruising equipment
Boarding plank
Boat pole
Boat hook
Front & rear fenders
Front & rear ropes
Exterior finish
Two colour finish (choice) with contrast coach line and grip finish to roof, front/rear decks & front/rear gunwale
Seven coats of paint in total
Combination of gold anodised 36” x 21” windows & 15” diameter portholes (chrome finish also available)
Hull blacking in two-pack epoxy primer with Comastic blacking over
Heating
Diesel central heating with programmer, 3 radiators & heated towel rail
Twin coil hot water calorifier
Multi fuel stove
Saloon
Central open plan saloon
Multi fuel stove
TV unit with aerial/satellite point
Central heating radiator

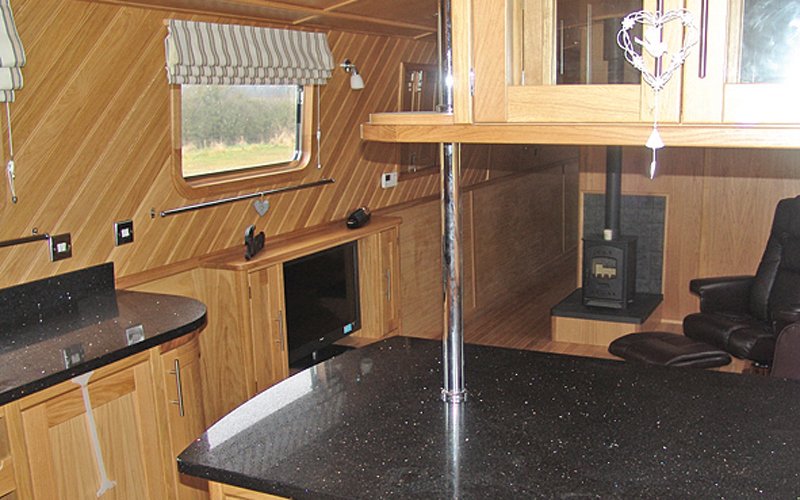

Galley
Stainless steel sink & drainer with chrome monobloc tap
Full size gas cooker with oven, grill & 4 burner hob
Provision for full size fridge & freezer
Wood work surfaces and tiled splash backs (stone also available)
Custom made fitted base and overhead storage units
Central heating radiator
Bathroom
Cassette toilet (Pump out toilet optional)
800mm x 800mm shower cubicle
Heated towel radiator
Ceramic basin in vanity unit with chrome mixer tap
Wall mirror
Shaver socket

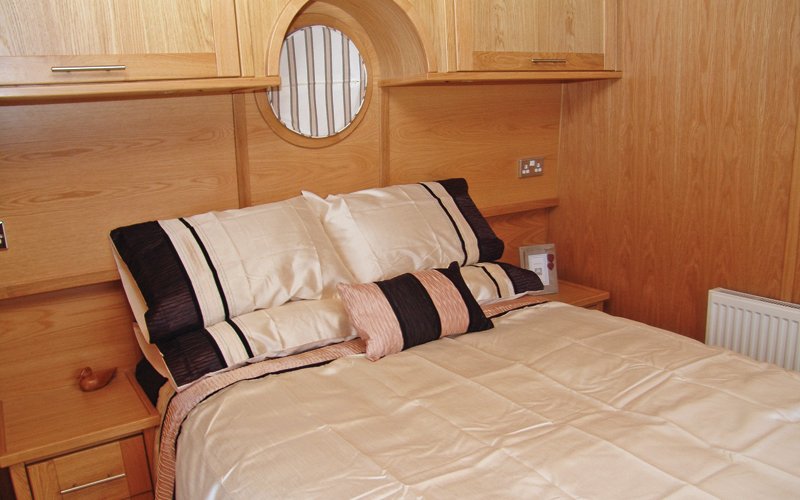

Bedroom
Fixed 6’ 3” x 5’ 0” double bed with luxury mattress
Over bed shelf incorporating reading lights
Under bed storage
Ample wardrobe space
Central heating radiator
Second Bedroom
Choice of layout including bunk beds or office configuration
Interior finish
Dense spray foam insulation (average 38mm)
Oak veneered ply to cabin sides and deck head
Diagonal solid oak planks to cabin sides (painted panels also available)
Solid oak trims & edging
Solid oak door frames throughout including cupboards
Solid oak window surrounds
Solid oak plank flooring
Vinyl floor covering (choice) to galley and bathroom
Easy clean laminate shower panel (choice)
Single pane windows (glass easily removed for cleaning)
Brass finish to switches, sockets, down lights & mushroom vents (chrome finish also available)
Please note, unlike other builders, we never use MDF on hull or cabin linings
Electrical
1 x 110 amp/h starter battery
5 x 110 amp/h leisure batteries
230v ring main circuit with 5 x 2-gang sockets & RCD protection
230v landline socket
3kW pure sine wave inverter
12v circuit
Wall lights and halogen down lights
AC/DC distribution panel
Battery charger
Automatic bilge pump
Headlamp & horn
Battery isolation switches
Navigation lights
Steelwork and External
“Eurocruiser” stern with hydraulic steering
Recessed fender eyes
Bow lockers (pair)
Fairleads (rope guides) per pair
Touch up paint (per colour) 1/2 litre
Signwriting
Different colour paint finish (choice) to roof
Cratch and cover (front)
Pramhood cover (rear)
Mechanical and Electrical
Engine upgrade to Canaline 70hp
Engine upgrade to Canaline 60hp
Bow thruster 95 kgf in dedicated water tight compartment
Galvanic isolator
Inverter upgrade to 3kW (includes 2 extra batteries)
Additional 2-gang 240V sockets (each)
2-gang socket with twin USB outlets (each)
Additional TV /satellite point in bedroom
Immersion coil for calorifier
Landline cable 25 metres
Low consumption LED interior lighting
Diesel stove (only in conjunction with bow lockers)
Interior finish
Ash faced panel & solid ash trims in lieu of oak
Contemporary painted interior panels
Solid wood plank ceiling (painted)
Chrome/silver finish (includes exterior fittings)
Oak or ash interior hinged window shutters
Solid oak plank floor
Galley
Choice of ‘Techstone’ re-constituted stone worktops
Dishwasher housing (including services)
Bathroom
Pump out toilet. Water efficient system with 275 litre (approx.) holding tank (storage under bed reduced)
Shower combined light/extractor fan
Washing machine housing (including services)
Cruising equipment
Navigation lights
Side fenders (set of 6)
Anchor
Lifebelt
